Used FANUC M-20ia Industrial Robot With R-30ib – Complete Robot System

  • June 24, 2025 3:04 pm
  • Mason, OH, USA
  • 443 views
FeaturedPopular
Used FANUC M-20ia Industrial Robot With R-30ib – Complete Robot System
Used FANUC M-20ia Industrial Robot With R-30ib – Complete Robot System
Used FANUC M-20ia Industrial Robot With R-30ib – Complete Robot System
Used FANUC M-20ia Industrial Robot With R-30ib – Complete Robot System
Used FANUC M-20ia Industrial Robot With R-30ib – Complete Robot System
Used FANUC M-20ia Industrial Robot With R-30ib – Complete Robot System
Used FANUC M-20ia Industrial Robot With R-30ib – Complete Robot System
Used FANUC M-20ia Industrial Robot With R-30ib – Complete Robot System
Used FANUC M-20ia Industrial Robot With R-30ib – Complete Robot System
Used FANUC M-20ia Industrial Robot With R-30ib – Complete Robot System
Used FANUC M-20ia Industrial Robot With R-30ib – Complete Robot System
Used FANUC M-20ia Industrial Robot With R-30ib – Complete Robot System
$14,900total price

Overview

  • Condition of the Robot: Used - Good
  • Robot Payload: 20kg
  • Robot Reach : 1811mm
  • Robot Serial # : F118796
  • Robot Controller Model : R30iB

Description

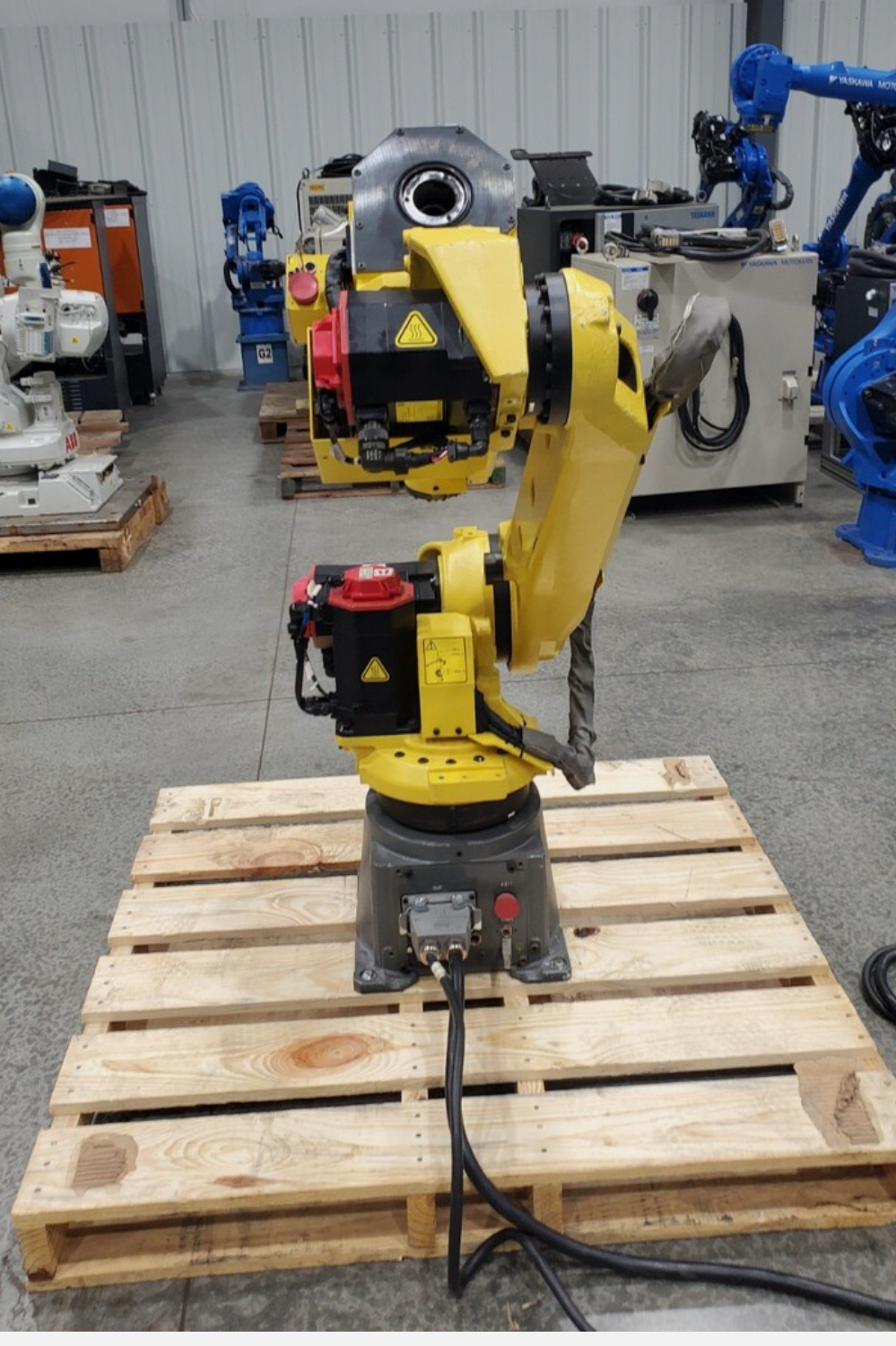

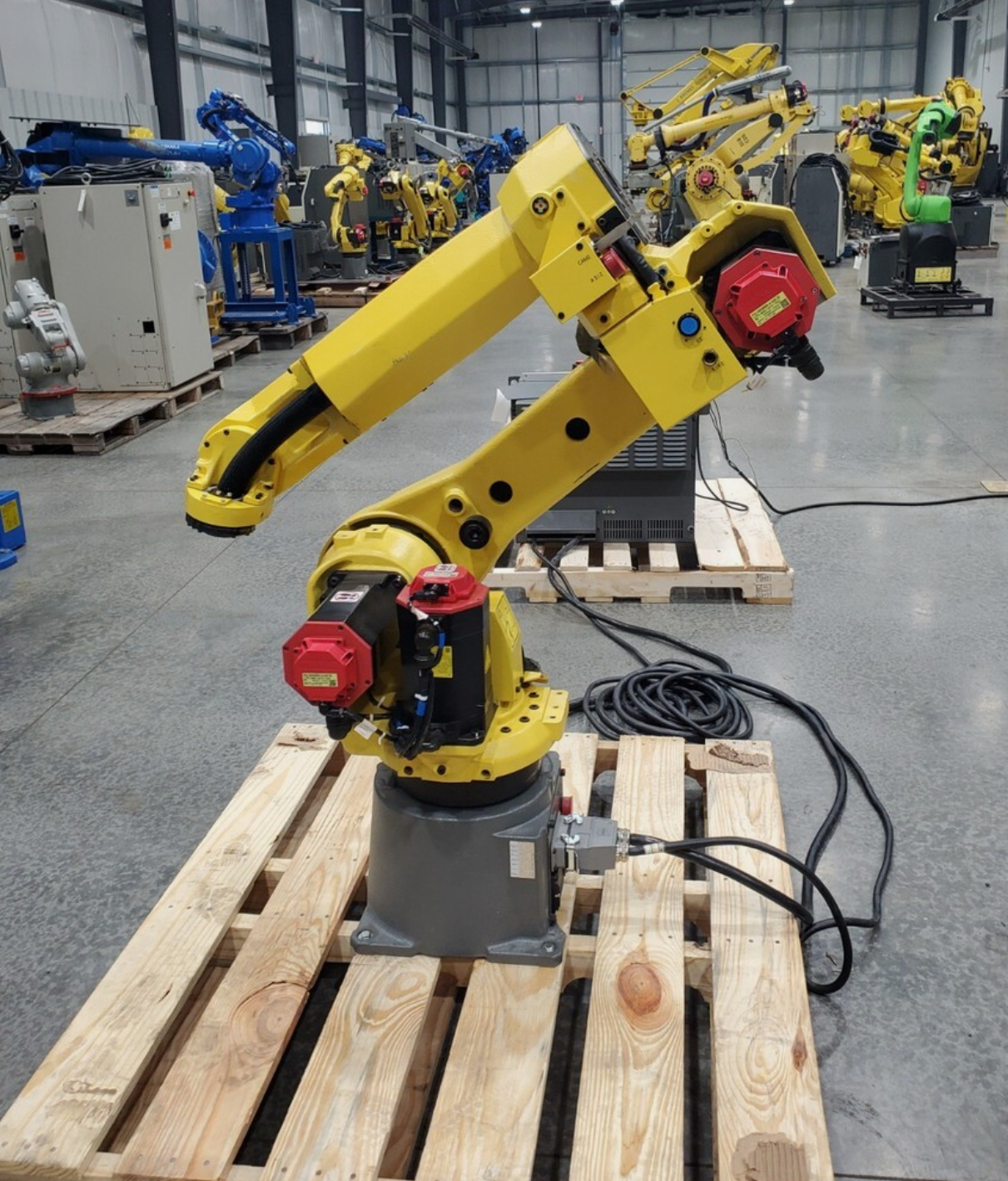

FANUC M-20ia(Arcmate 120ic) Industrial Robot

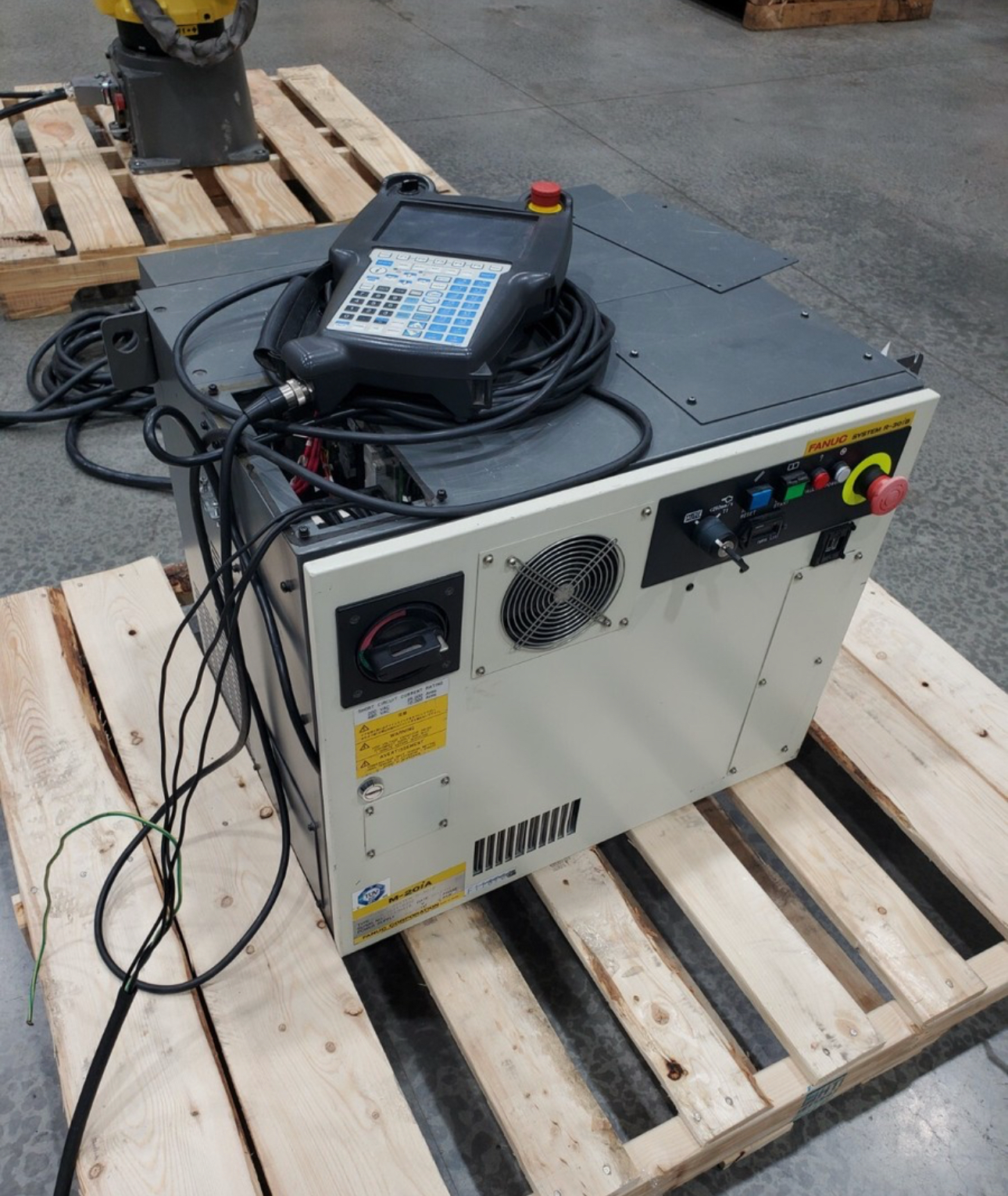

Robot is complete with controller, cables and teach pendant

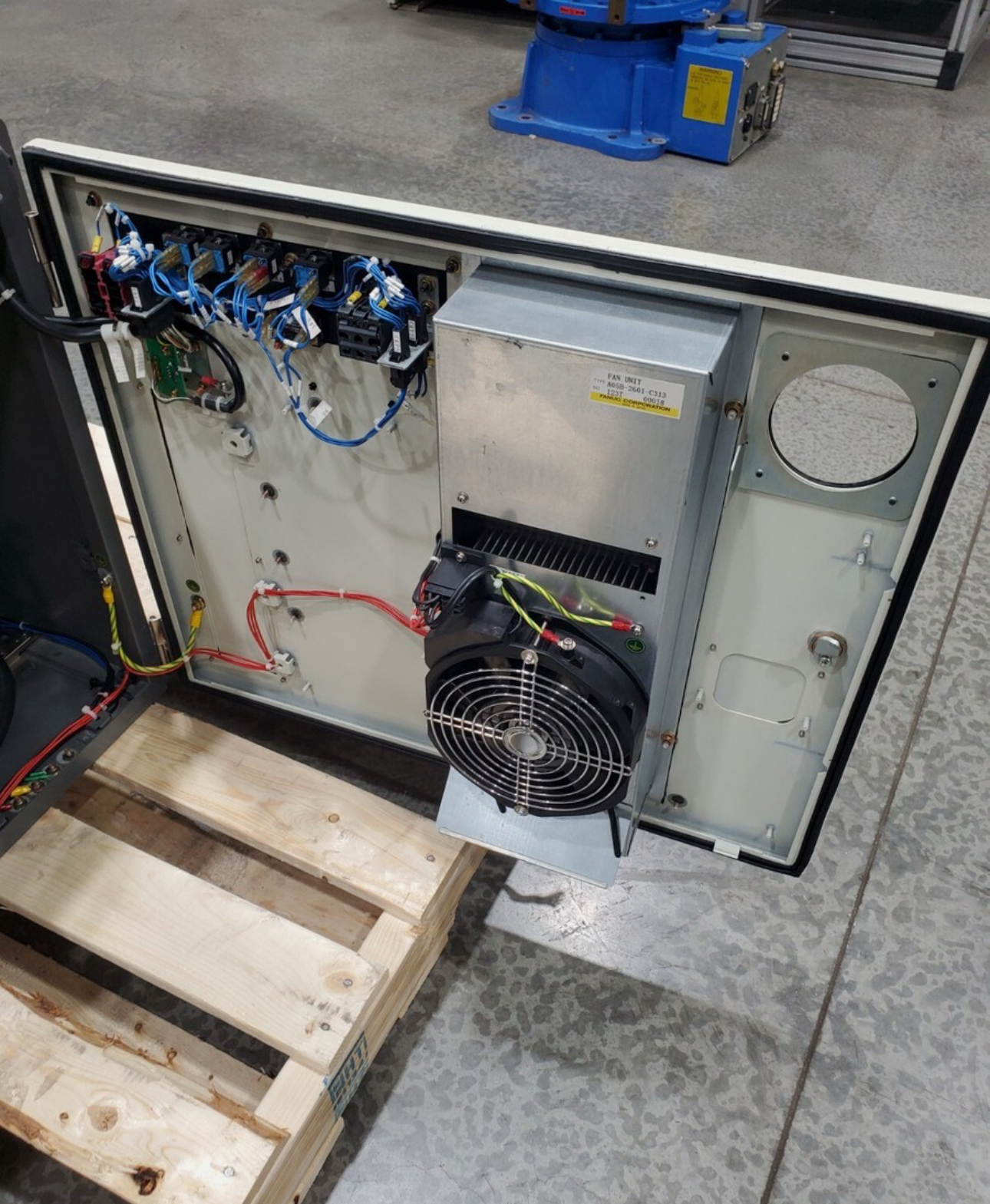

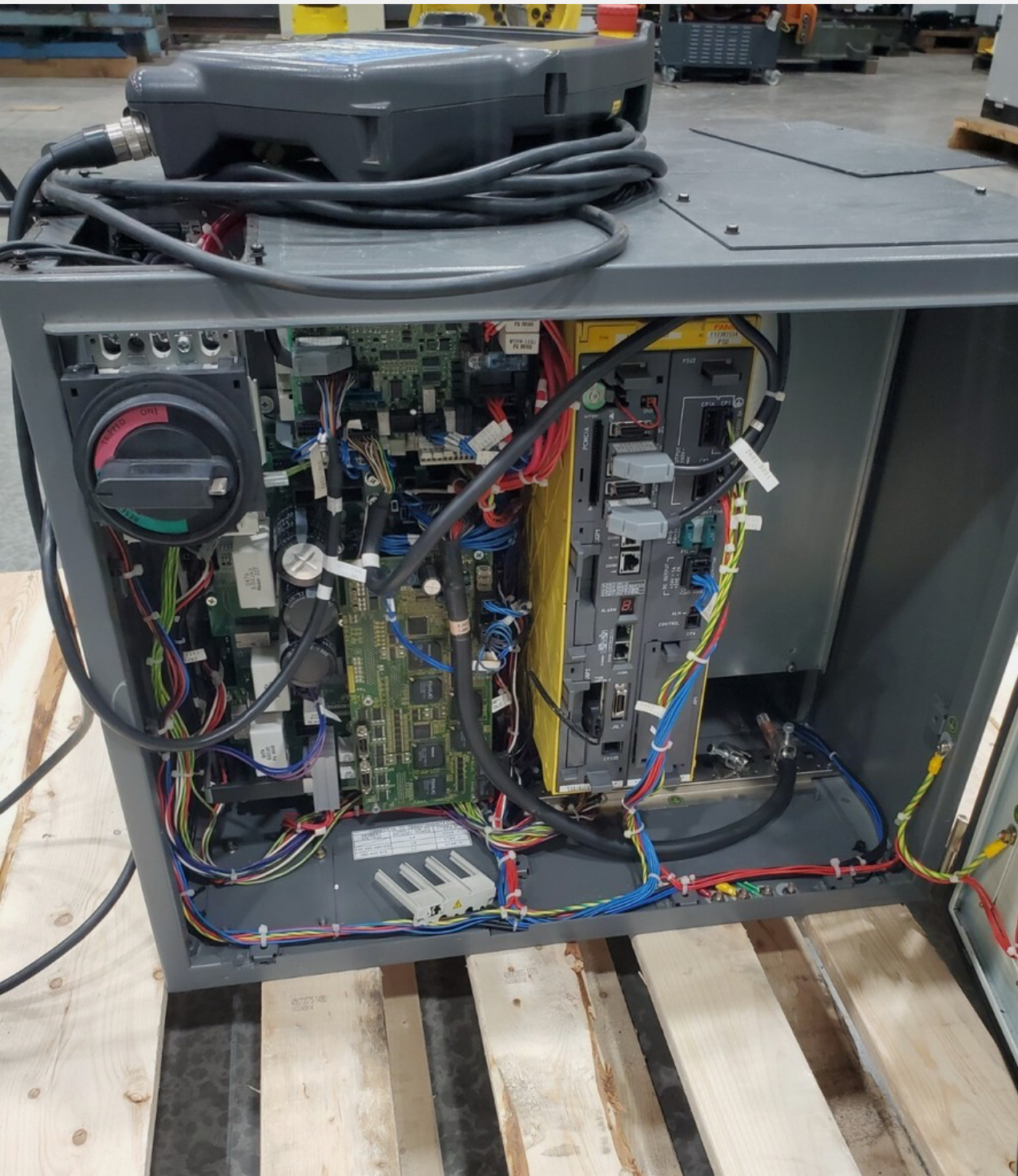

FANUC R-30ib Controller
Tested and fully functional

Software:

FANUC software can be purchased for additional cost and loaded after sale

Robot Specifications:

Axes 6
Payload: 20 KG (44 lbs)
Reach: 1811 MM (71.31 in)
Repeatability: ±0.08mm (.0031 in)
Robot Mass: 250 KG (551 lbs)
Structure: Articulated
Robot Motion Speed
J1 195 °/s (3.40 rad/s)
J2 175 °/s (3.05 rad/s)
J3 180 °/s (3.14 rad/s)
J4 360 °/s (6.28 rad/s)
J5 360 °/s (6.28 rad/s)
J6 550 °/s (9.60 rad/s)
Robot Motion Range
J1 – 370°
J2 – 260°
J3 – 458°
J4 – 400°
J5 – 360°
J6 – 900°

Shipping:

Robot can be shipped via flatbed trailer, Conestoga style, or side curtain.  No common carrier LTL available
Will load  for free
